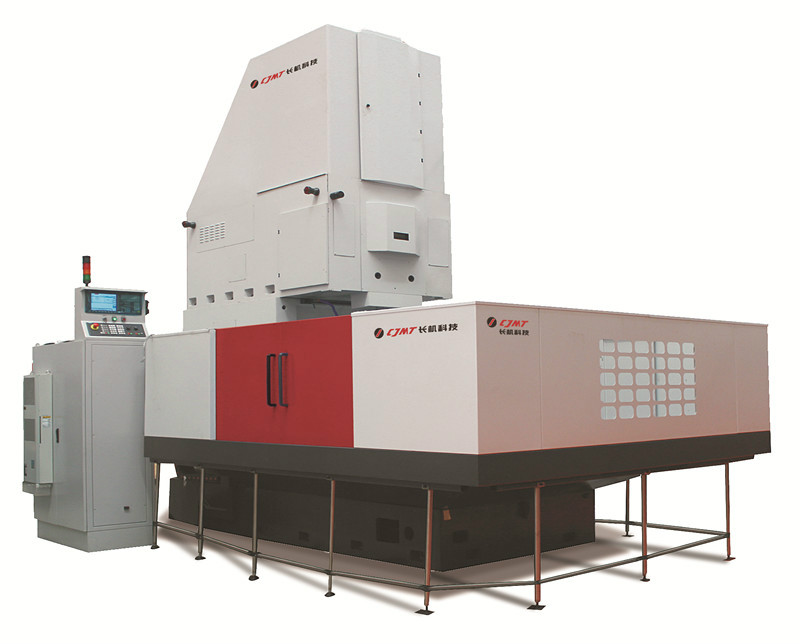

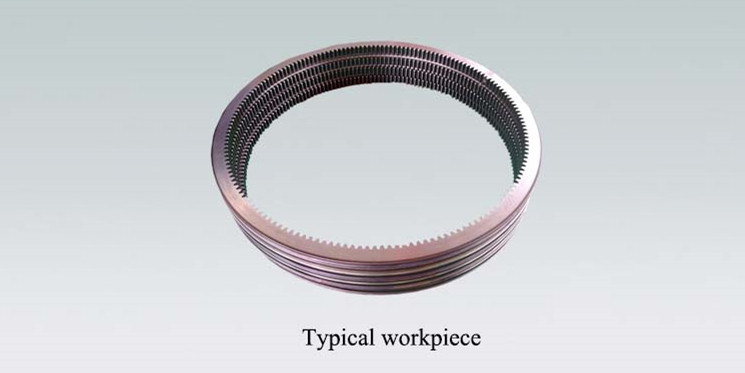

It is mainly applied to machine large internal and external spur and helical gears, especially suitable for the mass production of manufacturing industry of engineering machinery, mining machinery, heavy duty truck, tractor, aerospace, etc.
The machine is equipped with separate hydraulic system, magnetic chip conveyor and console electrical cabinet.
|
Specifications
|
YK51125C×3
|
|
Max.diameter of external（mm）
|
1250
|
|
Max.diameter of internal（mm）
|
1600
|
|
Max.module（mm）
|
16
|
|
Max.face width（mm）
|
300
|
|
Max.stroke length（mm）
|
330
|
|
Stroke speed（str/min）
|
15~150
|
|
Cutter relieving（mm）
|
≥0.5
|
|
Axial slide travel range of cutter head
|
-
|
|
Adjusting amount of stroke position（mm）
|
50
|
|
Spindle diameter（mm）
|
120
|
|
Diameter of worktable（mm）
|
1300
|
|
Sloping angle of worktable
|
-
|
|
Distance between axis of cutter spindle and worktable（mm）
|
0~800
|
|
Distance between the nose of spindle and worktable surface（mm）
|
250~630
|
|
Total power（kw）
|
31
|
|
Total weight（Kg） approx.
|
28000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
CNC system: 802DSL/828D
|
|
Spindle inverter: Schneider
|
|
Hydraulic system: Outside
|
|
Cooling system and chip conveyor: Outside
|
|
Inregrated lubrication system: batch-type
|
|
Electric cabinet: Outside
|
|
Standard cutter adaptor:Morse 5#, 2 pieces
|
|
Half cover
|
|
Accessory box
|
|
Sizing block
|
|
Optional Accessories
|
|
Iron block for column increase
|
|
Special cutter adaptor
|
|
Gear cutter
|
|
Helical guide
|
|
Extra-worktable
|
|
Full cover
|
