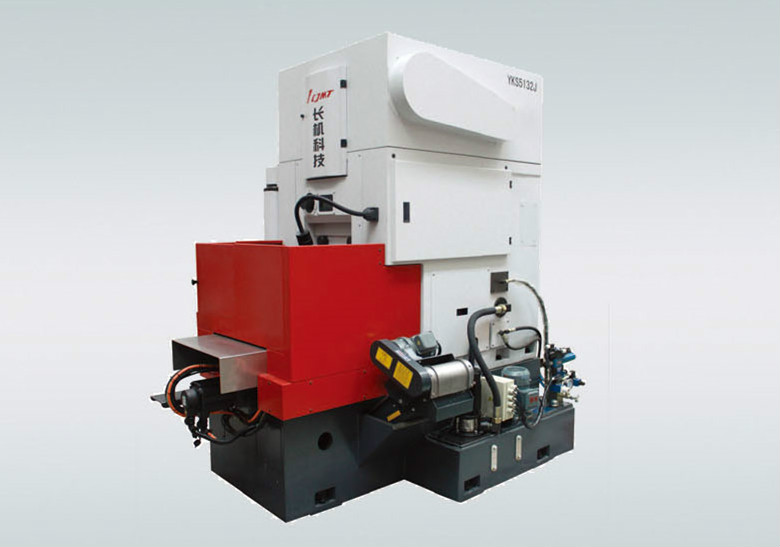

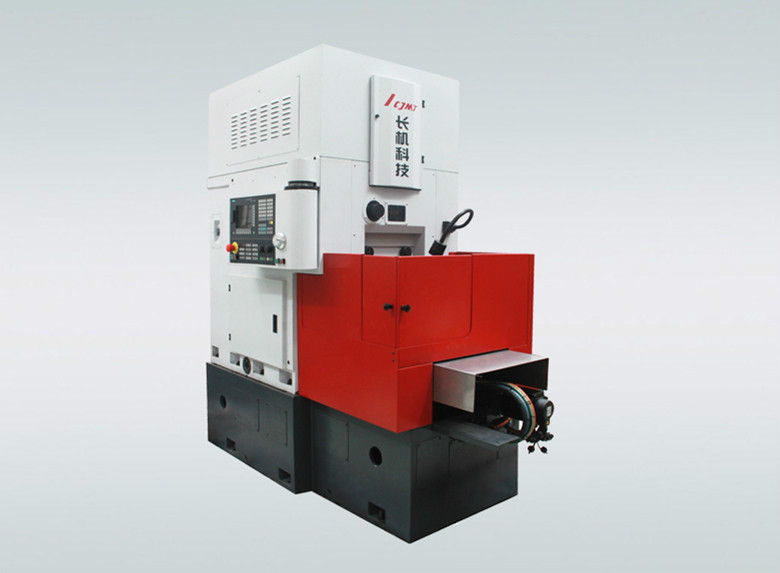

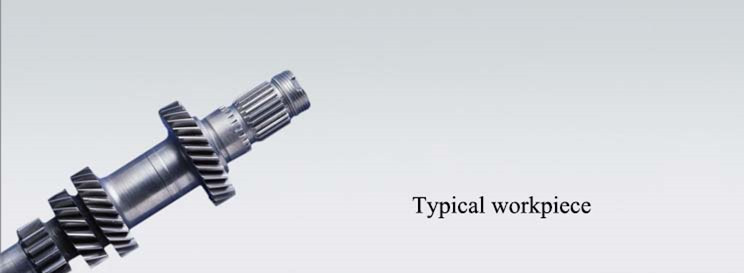

It’s mainly used for machining disc-type internal or external cylindrical gear and helical gear.

Main movement of the machine is driven by AC inverter motor with stepless speed regulating.

Both circular feed(X axis) and radial feed (C1 or C2 axis) are driven by AC servo motor.

The machine is energy saving CNC gear shaper, and with the features of reasonable layout, compact structure, small area, easy operation and maintenance.

Specifications	YKS5132J	YKH5132J	YKD5132J
Max.diameter of external（mm）	320	320	320
Max.diameter of internal（mm）	220+D_刀	220+D_刀	220+D_刀
Max.module（mm）	8	8	8
Max.face width（mm）	90	90	90
Max.stroke length（mm）	100	100	100
Stroke speed（str/min）	150～1000	150～1000	150～1000
Cutter relieving（mm）	≥0.3	≥0.3	≥0.3
Axial slide travel range of cutter head	-	-	-
Adjusting amount of stroke position（mm）	30	30	30
Spindle diameter（mm）	85	85	85
Diameter of worktable（mm）	300	300	250
Sloping angle of worktable	-	-	±12°
Distance between axis of cutter spindle and worktable （mm）	-110～265	-110～265	-110～265
Distance between the nose of spindle and worktable surface（mm）	135～265	115～245	135～265
Total power（kw）	13.3	13.2	13.3
Total weight（Kg） approx.	4500	4500	4500

Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
